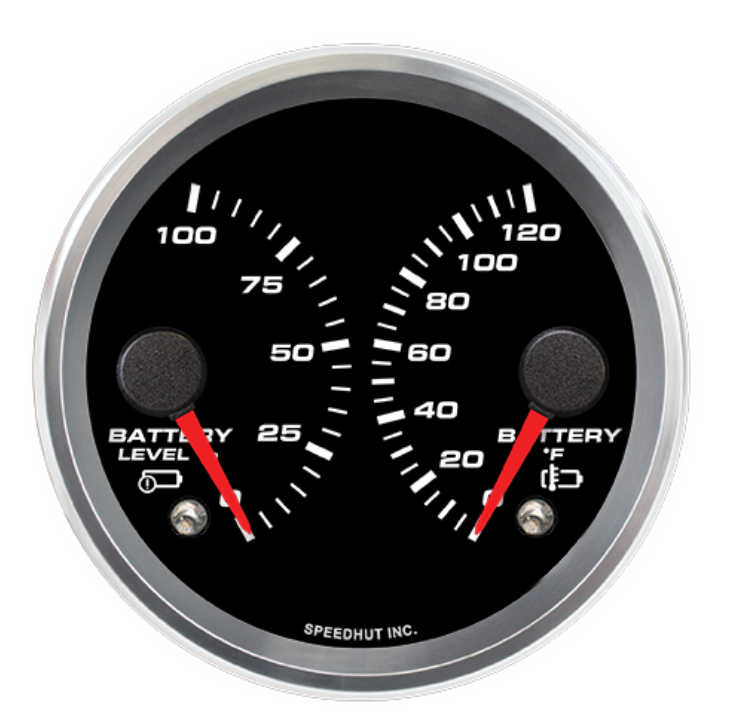

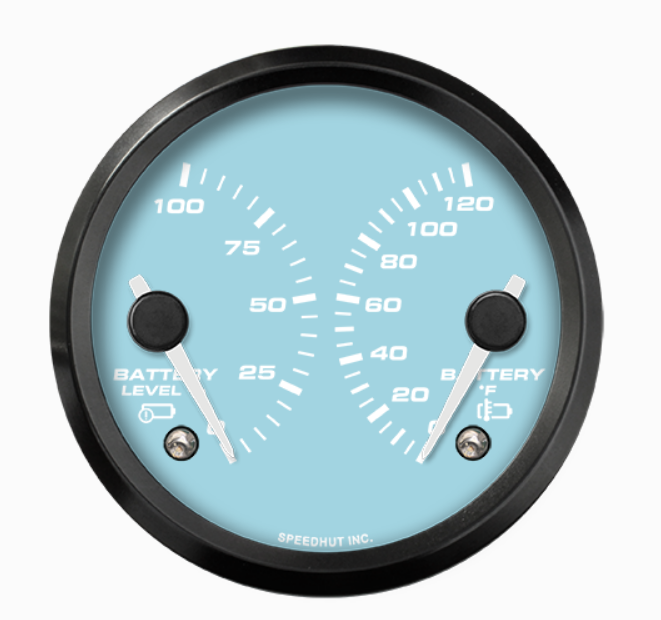

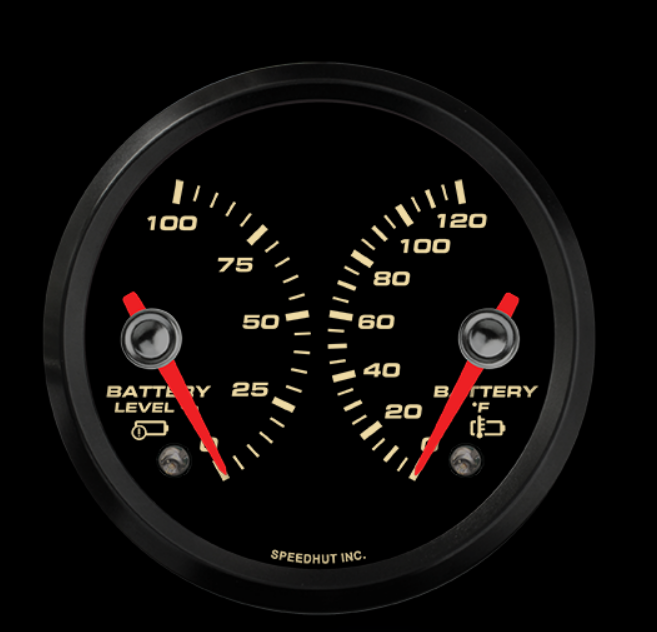

Speedhut EV Dual Gauge | Battery SOC 0-100% / Battery Temp 0-120F - 3-3/8"

EV CAN-Bus Dual Gauge (Battery Level / SOC 0–100% & Battery Temp 0-120F) reads battery state of charge and battery temperature directly through the CAN network at 500K baud for stable real-time monitoring of energy level and thermal condition. Built for clean EV integration, it delivers accurate dual-function battery data with a clean factory-style look to help manage range, monitor battery heat, and give you better insight into overall battery performance and system health. A precision stepper motor keeps the pointer smooth, accurate, and easy to read at a glance. Built for long-term reliability, it keeps critical EV battery data visible in one compact gauge, is made in the USA, and is backed for life.

Default programming is for Orion, Zero EV, and Thunderstruck systems, and a baud rate of 500 kbps. Please contact us if you require alternate programming.

Key Features:

• Direct CAN Battery Level + Temp Data — reads state of charge and battery temperature directly from the CAN network
• 500K Baud CAN Communication — built for proper integration with supported EV systems
• Dual-Function Battery Monitoring — tracks charge level and battery thermal condition in one compact, easy-to-read gauge
• Battery Level Warning Light — activates below 15% for a clear low-charge alert
• Battery Temp Warning Light — activates above 100°F (38°C) for a clear high-temperature alert
• Compact Dual-Gauge Design — maximizes dashboard space while keeping critical EV battery data in view
• Stepper Motor Precision — smooth, accurate pointer movement
• Microprocessor-Driven — real-time accuracy
• Made in the USA — backed by a lifetime warranty

Speedhut EV Gauge Instructions (pdf)
