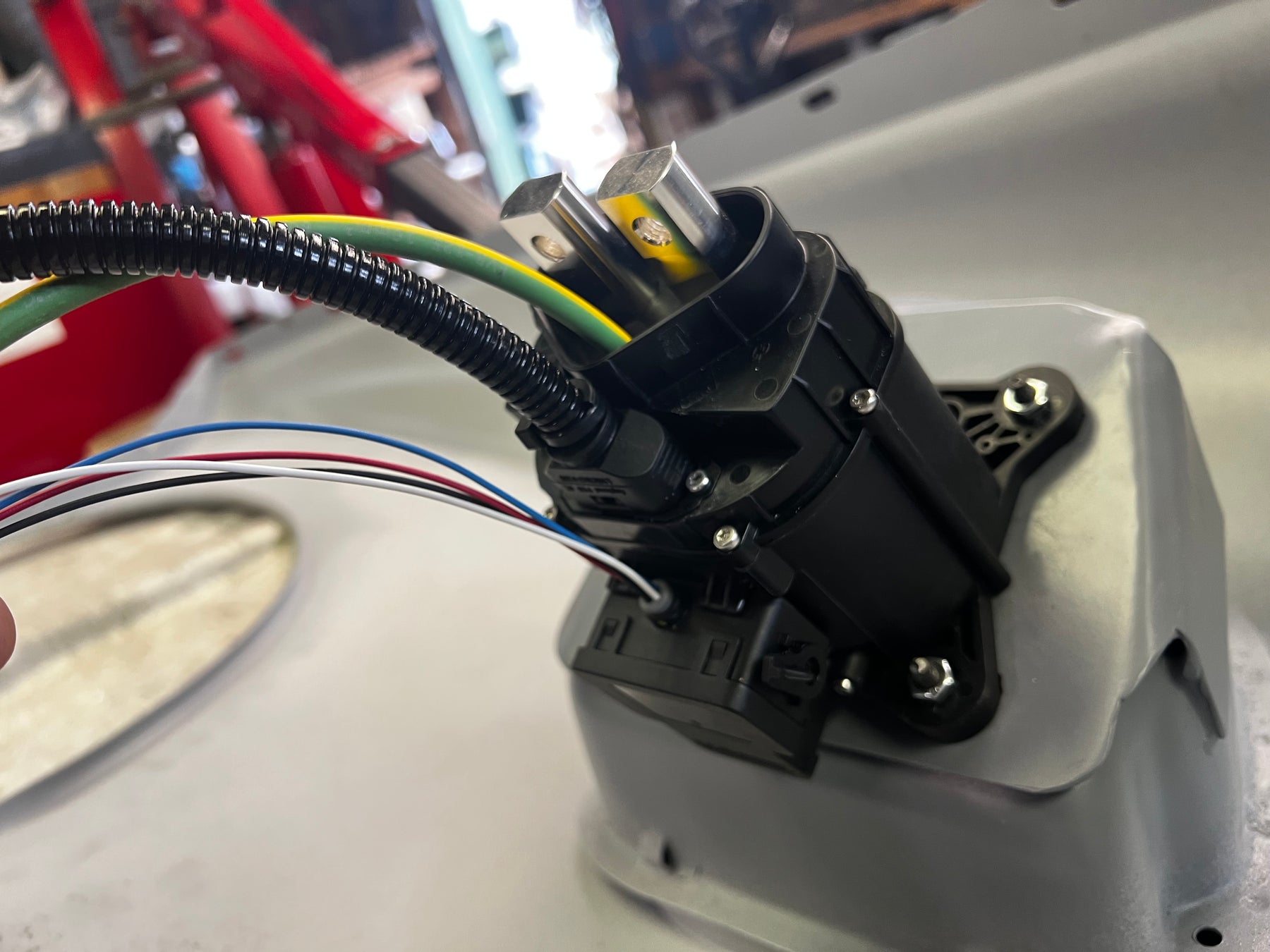

Prevent arcing, improve safety, and prevent unwanted unplugging by adding an E-Lock to your NACS Charging Inlet. Required for Level 3 applications, but highly recommended for all applications.
A controller for the E-Lock will be available soon. Fill out an interest form to stay updated!

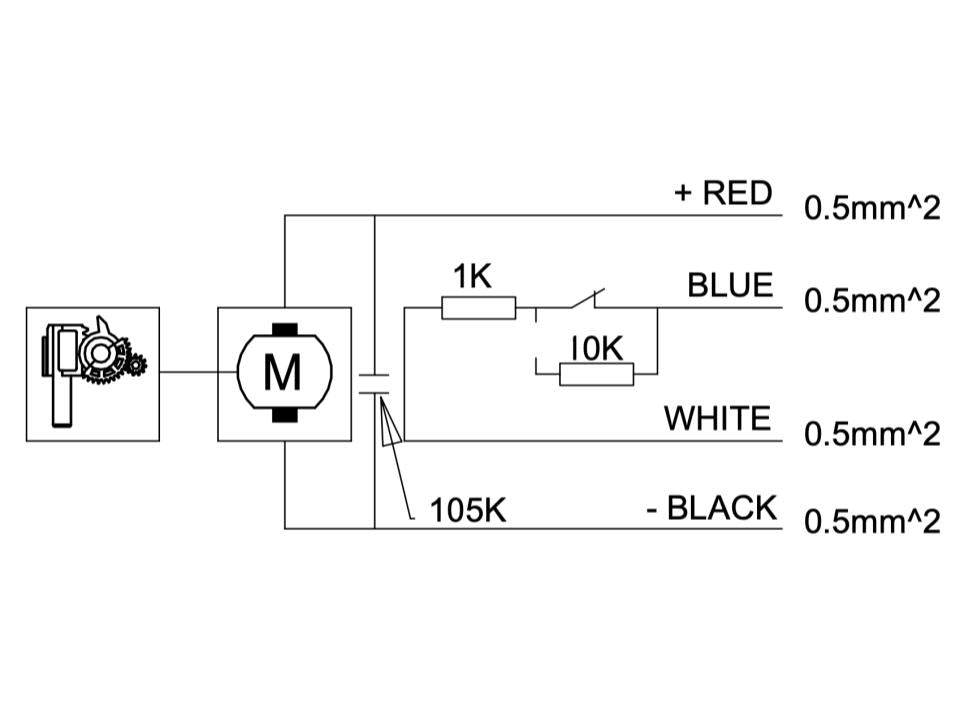

Wiring Information:
Red: Motor +
Black: Motor -
Blue: Feedback
White: Feedback
Feedback Signal:
Unlocked: 1 KΩ
Locked: 11 KΩ
