HPEVS AC-34x2/AC-35x2 Motor Kit

Name: HPEVS AC-34x2/AC-35x2 Motor Kit
Brand: HPEVS
Price: 8255.0 USD
Availability: InStock

$8,255.00

Tax included. Shipping calculated at checkout. Shipping Policy

[{"id":32156089483316,"title":"1238E-7621 (72-126V \u0026 650A) \/ No","option1":"1238E-7621 (72-126V \u0026 650A)","option2":"No","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HPEVS AC-34x2\/AC-35x2 Motor Kit - 1238E-7621 (72-126V \u0026 650A) \/ No","public_title":"1238E-7621 (72-126V \u0026 650A) \/ No","options":["1238E-7621 (72-126V \u0026 650A)","No"],"price":825500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":32156089516084,"title":"1238E-7621 (72-126V \u0026 650A) \/ Yes","option1":"1238E-7621 (72-126V \u0026 650A)","option2":"Yes","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HPEVS AC-34x2\/AC-35x2 Motor Kit - 1238E-7621 (72-126V \u0026 650A) \/ Yes","public_title":"1238E-7621 (72-126V \u0026 650A) \/ Yes","options":["1238E-7621 (72-126V \u0026 650A)","Yes"],"price":825500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":32156089548852,"title":"1239E-8521 (96-170V \u0026 500A) \/ No","option1":"1239E-8521 (96-170V \u0026 500A)","option2":"No","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HPEVS AC-34x2\/AC-35x2 Motor Kit - 1239E-8521 (96-170V \u0026 500A) \/ No","public_title":"1239E-8521 (96-170V \u0026 500A) \/ No","options":["1239E-8521 (96-170V \u0026 500A)","No"],"price":944500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":32156089581620,"title":"1239E-8521 (96-170V \u0026 500A) \/ Yes","option1":"1239E-8521 (96-170V \u0026 500A)","option2":"Yes","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HPEVS AC-34x2\/AC-35x2 Motor Kit - 1239E-8521 (96-170V \u0026 500A) \/ Yes","public_title":"1239E-8521 (96-170V \u0026 500A) \/ Yes","options":["1239E-8521 (96-170V \u0026 500A)","Yes"],"price":944500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":32173345177652,"title":"Motor Only \/ No","option1":"Motor Only","option2":"No","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HPEVS AC-34x2\/AC-35x2 Motor Kit - Motor Only \/ No","public_title":"Motor Only \/ No","options":["Motor Only","No"],"price":314000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Includes: HPEVS Motor, Curtis Controller, Wiring Harness, 2-inch Display and 12V Contactor

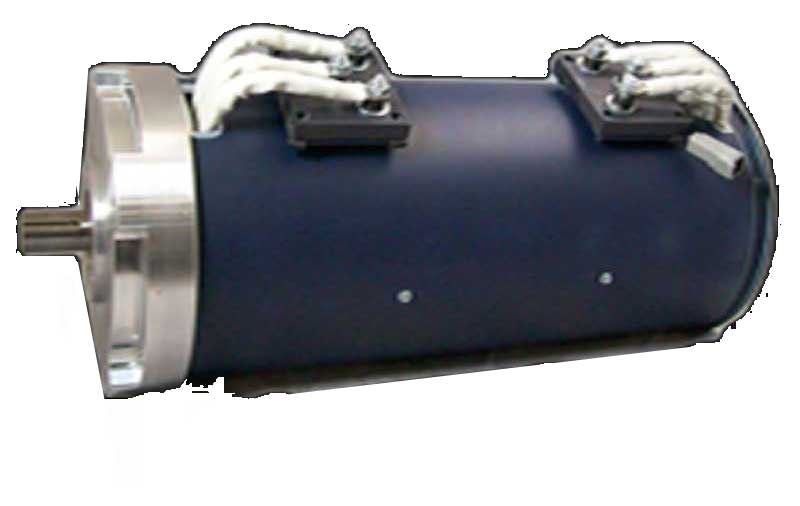

There are two designs of the AC 3Xx2 motor. Both the AC34X2 and the AC35X2 are designed for automotive applications (up to 3500 lbs) but can be used in a multitude of applications. The design of the motor is as such that there are two rotors on one common shaft. The frame of this motor includes the two stators which combined with the rotor shaft and the remaining parts, the result is a really nice motor package. The motor will have approximately double the torque and horsepower that the single AC-34 and AC-35 motor has now. Ideal uses for these motors:

Automotive
Ground Support Equipment

They can be paired with any of the following Curtis brand motor controllers:

1238E-7621 (72-126V, 650A)
1239E-8521 (96-170V, 500A)

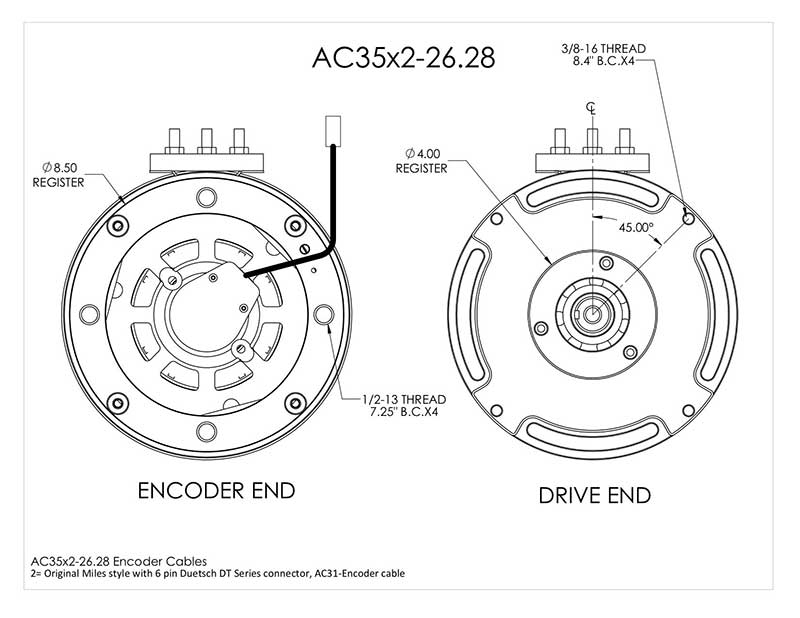

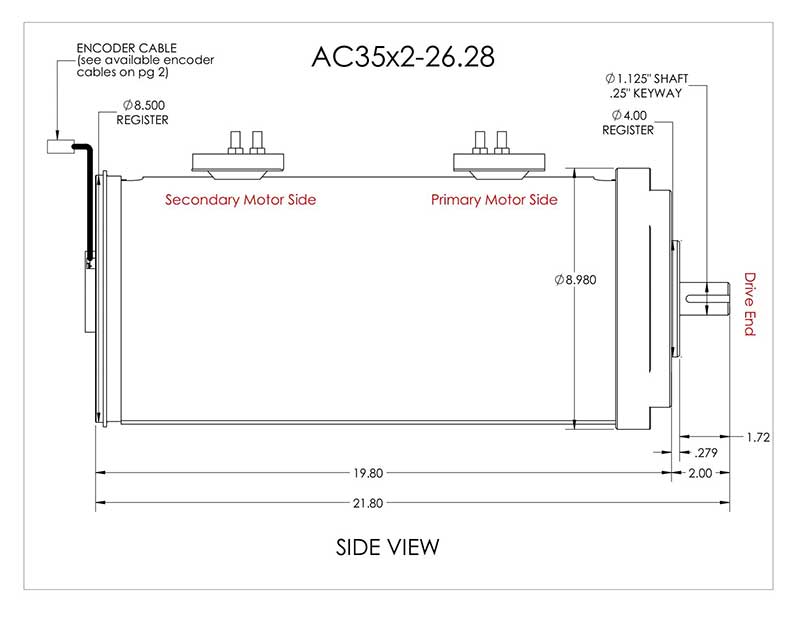

These motors ship with NEMA B-Face with 1 1/8" shaft.

AC-34x2 Power graphs AC-35x2 Power graphs
